Ultimate Fencing Kit
Delivered in 3 to 5 working days
Does an Ultimate Fence better fit your garden needs?
Fence Comparison
Order samples of our fencing wood to try before you buy
Order Samples
-
Built to last with superior strength and resilience.
-
Modern design crafted from eco-friendly materials.
-
Stands strong against harsh weather conditions!
Core Features
Overview
Post Colour: Dark Grey
Dimensions: 80mm x 80mm
Available Heights: 5ft, 6ft, 7ft, 8ft, and 9ft

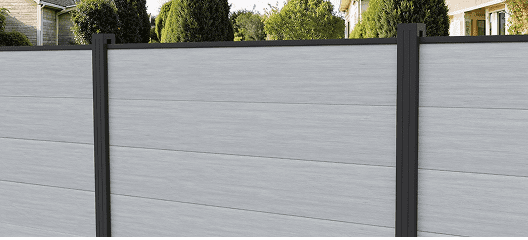

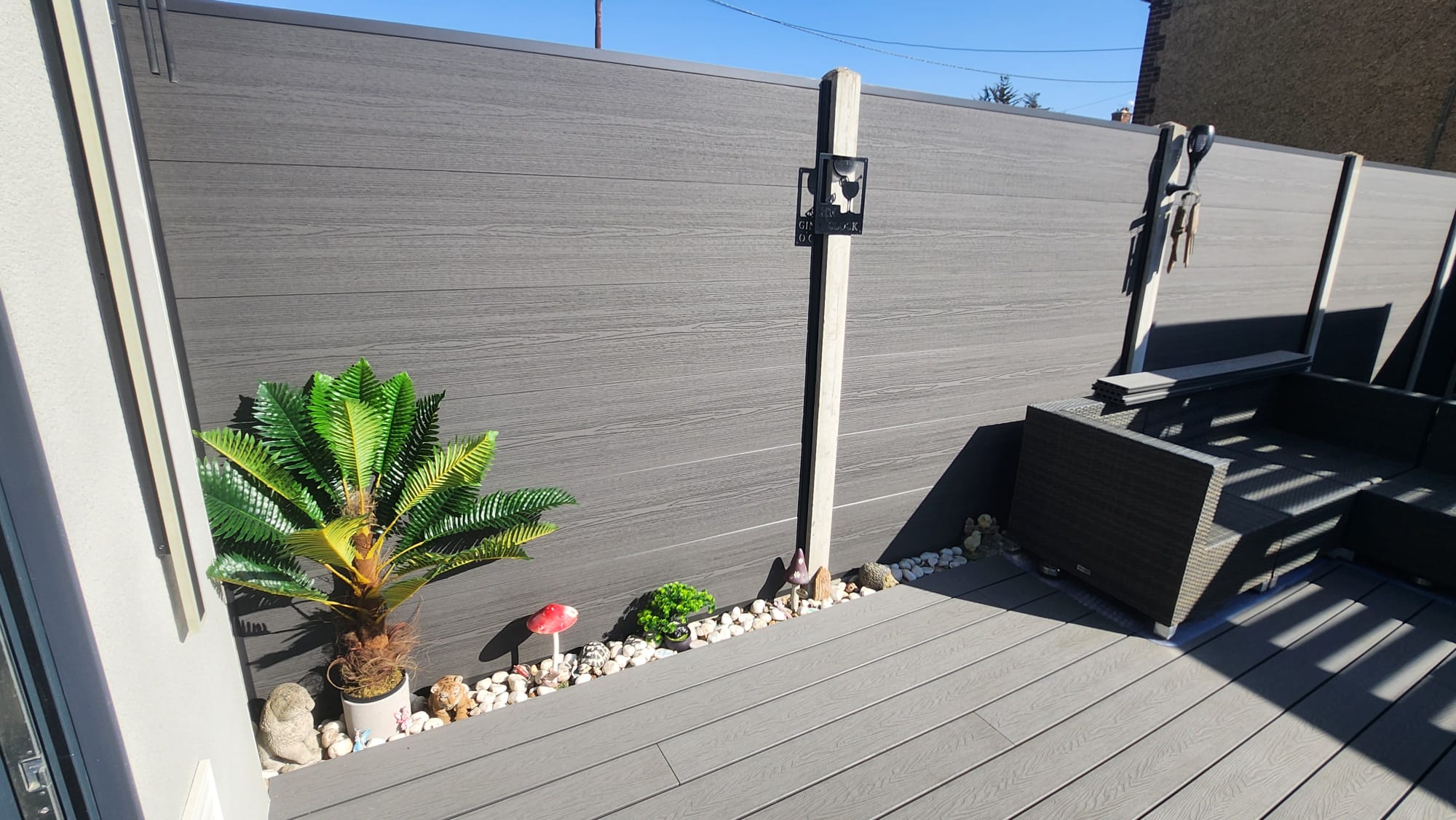

Our Heavy Duty Composite Fencing Kit is sustainably manufactured from eco-friendly, recycled materials, combining the beautiful look and texture of wooden fences with unbeatable durability.
Crafted from Wood Plastic Composite (WPC), these fence panels are designed to withstand the toughest weather while keeping your garden looking fantastic all year round—no more worrying about rotting, decaying, splitting, or splintering! Best of all, they require minimal upkeep; just a quick wipe-down with soap and water will keep them looking their best.
With amazing weatherproofing features, our fencing will stay a unique part of your garden for years to come.
Check out the FAQs below for details on what’s included in the kit, technical specifications and warranty information!
How to use
• Plan Your Layout: Measure and mark out your fence line, and make sure you have everything you need.

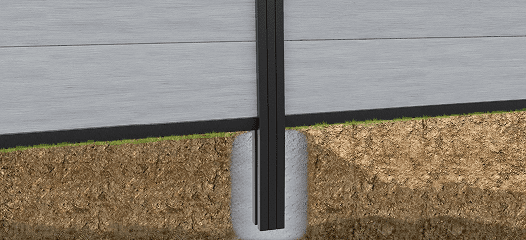

• Install the Framework: If you have purchased aluminium posts, then secure the aluminium posts, rails, and cover strips to create a sturdy base.
• Fit the Boards and Trellis: Slot in the composite boards and add the trellis for a polished, finished look.
In just a few easy steps, the Heavy Duty Composite Fencing Kit delivers a sturdy fence that keeps looking great, with minimal maintenance required.
Installation guide
• Gather all tools and components before beginning.
• Watch the video guide to see each step in action.
• Refer to the manual for detailed measurements and tips.

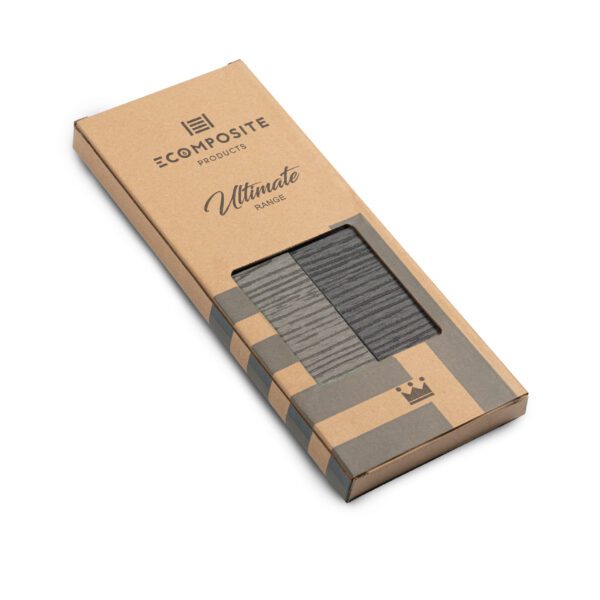

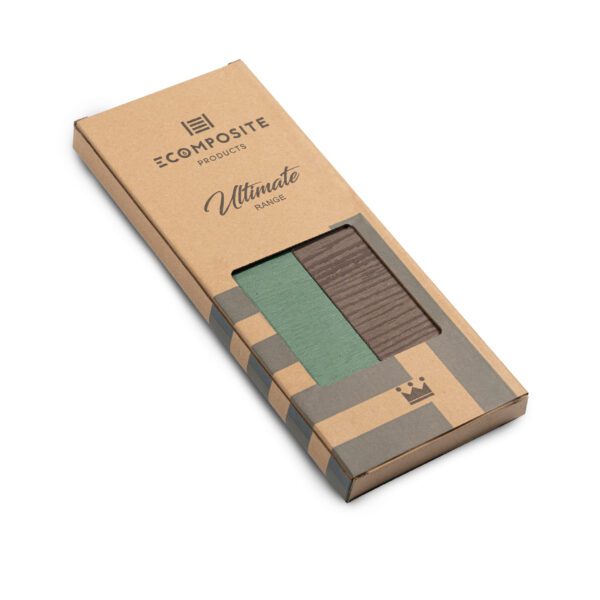

Try our Samples
Frequently Asked Questions
What is included in our Ultimate Heavy Duty Composite Fencing Kit?
When you purchase our Ultimate Heavy Duty Composite Fencing Kit, you’ll receive everything you need in your chosen colour to get started. Here’s what’s included in your fence kit:
- 1 x Aluminium Post – 80mm x 80mm (Dark Grey)
- 2.4m length post provided for 5ft and 6ft fencing
- 3.5m length post provided for 7, 8 and 9ft fencing
- 1 x Aluminium Post Cover Strip (Dark Grey)
- 1 x Vinyl Post Cap (Dark Grey)
- 1 x Aluminium Top Rail (Dark Grey)
- 1 x Aluminium Bottom Rail (Dark Grey)
Composite Tongue and Groove Boards
Available in:
- Charcoal Wood Grain
- Charcoal Sanded
- Stone Grey Wood Grain
- Dark Oak Wood Grain
- Evergreen
Board Quantities:
- 5ft – 5 Boards
- 6ft – 6 Boards
- 7ft – 7 Boards
- 8ft – 8 Boards
- 9ft – 9 Boards
Overall Measurements:
- 5ft: 1550mm (155cm) including 5 Boards, 1 Top Rail, and 1 Bottom Rail
- 6ft: 1850mm (185cm) including 6 Boards, 1 Top Rail, and 1 Bottom Rail
- 7ft: 2150mm (215cm) including 7 Boards, 1 Top Rail, and 1 Bottom Rail
- 8ft: 2450mm (245cm) including 8 Boards, 1 Top Rail, and 1 Bottom Rail
- 9ft: 2750mm (275cm) including 9 Boards, 1 Top Rail, and 1 Bottom Rail
With this kit, you’ll have everything you need to create a stunning and durable fence that enhances your outdoor space!

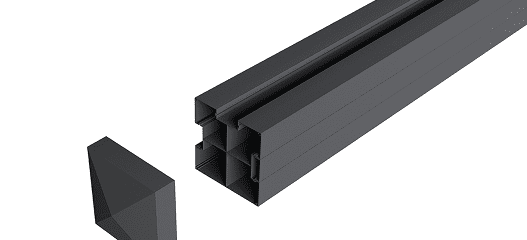

Do I require an End Post to finish the run of the Ultimate Heavy Duty Composite Fencing?
Yes, you’ll need an End Post to finish off your fence run. If you have multiple runs of fencing, you’ll need an End Post for each one. Here’s what you’ll get with our End Posts:
- 1 x Aluminium Post
- ULTPACK3C / ULTPACK3C.3.5
- 2.4m length post provided for 6ft fencing
- 3.5m length post provided for 7, 8 and 9ft fencing
- 1 x Aluminium Post Cover Strip
- 2 x Aluminium Board Stoppers
- 1 x Vinyl Post Cap
With these components, you’ll have everything you need to complete your fencing project seamlessly!
What are the finishes on your Ultimate Heavy Duty Boards?

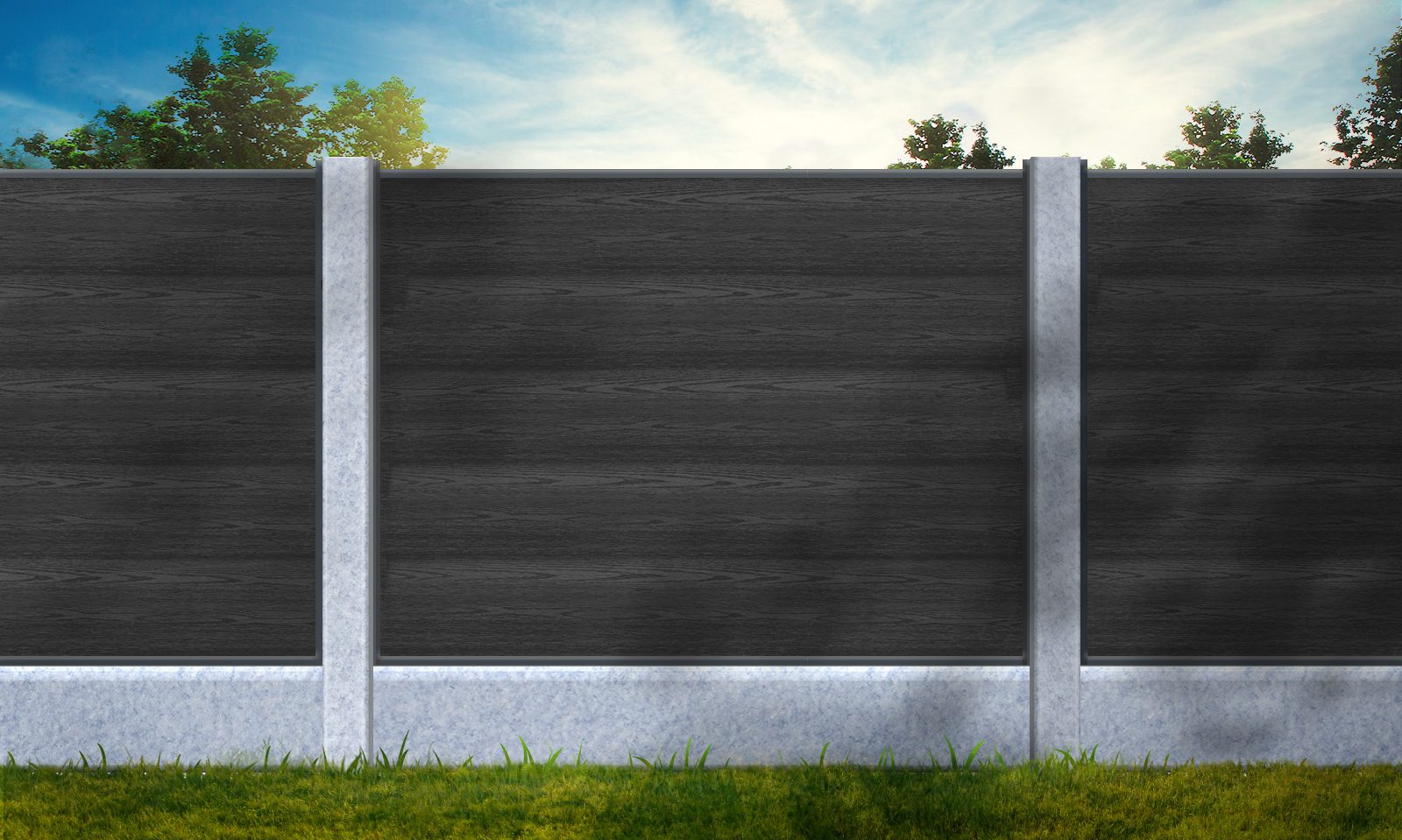

The finish on our Ultimate boards features a lovely wood grain texture, available in three stunning options: Charcoal Wood Grain, Stone Grey Wood Grain, and Dark Oak Wood Grain. These finishes not only look great but also add a touch of warmth to your outdoor space!
(Charcoal we can provide wood grain and sanded, Stone and Dark Oak are wood grain only and Evergreen is sanded only)
What are the technical specifications of the Ultimate Heavy Duty Composite Fencing Kit?
Wood Plastic Composite Fence Boards
- UGW303(C109).S / UGW303(C109) / UGW303(C101) / UGW303(C119) / UGW303(A05)
- 306mm H x 20mm T x 1830mm L
- 60% wood fiber (Professionally treated dry wood fiber)
- 32% HDPE(Grade A Recycled HDPE)
- 8% chemical additives

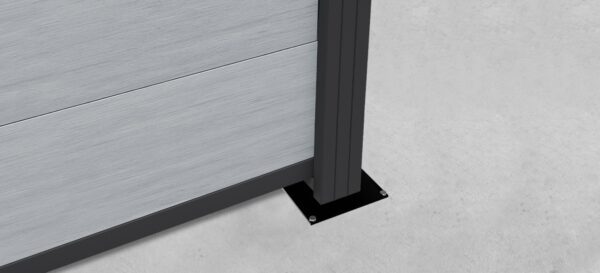

Aluminium Fence Post
- ULTPACK3C
- 80mm W x 80mm D x 2400mm L x 1.5mm (thickness)
- Hard anodising for wear resistance Type III 40 to 60µm
- Dark Grey Powder Coating 254 microns (~10 mils).
Aluminium Top Rail
- ULT-T/BRGREY
- 20mm D x 12mm H x 1830 L x 2.5mm (thickness)
- Hard anodising for wear resistance Type III 40 to 60µm
- Dark Grey Powder Coating 254 microns (~10 mils).
Aluminium Bottom Rail
- ULT-T/BRGREY
- 20mm D x 37mm H x 1830 L x 2.5mm (thickness)
- Hard anodising for wear resistance Type III 40 to 60µm
- Dark Grey Powder Coating 254 microns (~10 mils).
Aluminium Post Cover Strip
- 22mm W x 7mm D x 2400mm L x 1.5mm (thickness)
- Hard anodising for wear resistance Type III 40 to 60µm
- Dark Grey Powder Coating 254 microns (~10 mils).
Vinyl Post Cap
- 80mm W x mm D x 10mm H
- Dark Grey
What is the warranty provided on Ultimate Heavy Duty Fencing Kits?
We’re proud to offer a lifetime warranty on our Superior and Ultimate Range of Fencing from the date of your original purchase. Under normal conditions, our materials are guaranteed to be free from defects in workmanship and won’t check, split, splinter, rot, or suffer structural damage from termites or fungal decay.
Obtaining Warranty Performance:
If you notice a defect in your Superior or Ultimate Fencing Range, let us know in writing within 30 days of discovering the issue. Just include proof of purchase and a brief explanation of the defect. We might ask for a bit more info to assess your claim. If we find your claim valid, we’ll either replace the defective product or refund what you paid for it (excluding installation costs). Please note that we aren’t responsible for removing the defective fencing or installing replacements.
Transfer of Warranty:
You can transfer this warranty once within three years of your original purchase to a new buyer of your property where the fencing was installed.
Exclusions from Warranty Coverage:
Our warranty doesn’t cover:
- Improper installation or failure to follow our guidelines.
- Use beyond normal residential settings or applications not recommended by us.
- Issues caused by ground movement or structural settling.
- Damage from acts of God, environmental conditions, or foreign substances.
- Changes in the product’s colour.
- Weathering effects due to sun exposure or other natural elements.
- Improper handling, storage or neglect.
Limitations:
We aim to provide an express written warranty, and aside from that, we don’t make any other promises or guarantees, whether express or implied. If there are any issues, our liability is limited to the replacement of the products or a refund of the purchase price.
This warranty is the final agreement between us regarding your purchase, superseding any previous discussions. It can only be changed through a written agreement signed by both parties. This warranty applies to purchases made on or after May 1st, 2018.
:
